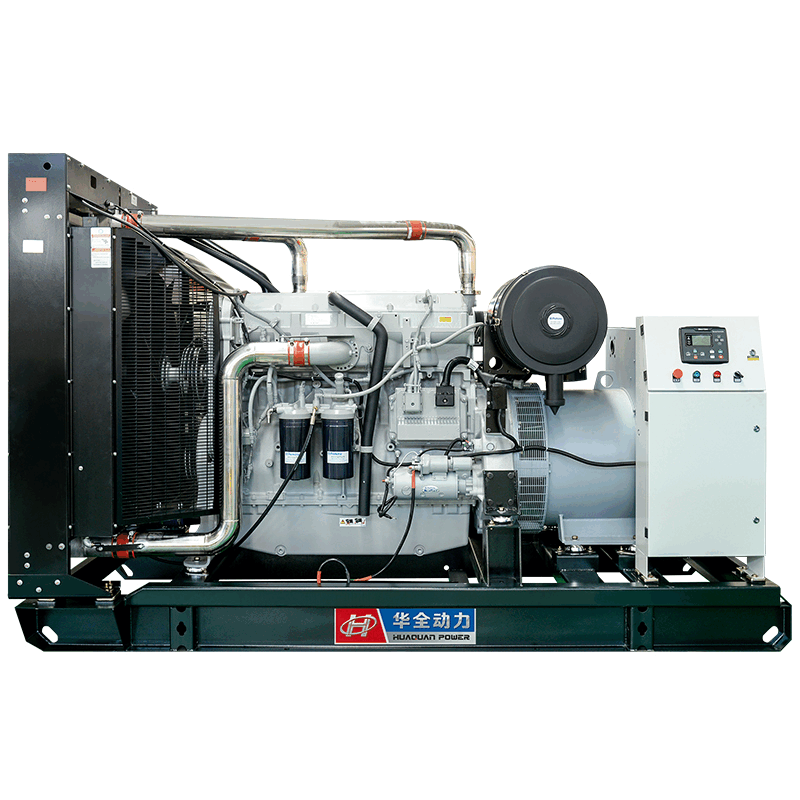

Technical parameters of diesel generator set Generator set model：HQ400GF Steady state voltage adjustment rate (%): 1 Generator power:400kW Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Generator set current:720A Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel generator size:3400*1390*1780 （L*W*H mm） Diesel generator fuel consumption (100% load):209g/kWh Diesel generator weight:3650kg Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand: US Cooling method: Closed water-cooling Diesel engines model: 2506C-E15TAG3 2 40 Oil supply method: direct injection Engine cylinder number: 6/ L Type Speed regulation method: Mechanical Bore stroke: 137*171 mm Intake method: Natural inhalation Compression ratio: 16：1 Overload capacity: 110% Start method：DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of generator Generator brand：Wuxi Stanford Protection level：IP23 Generator Model：HCI544C1 Wiring mode：Three-phase four-wire, Y-connection Generator power: 400kW Adjustment method: AVR (Automatic Voltage Regulator) Rated voltage: 400V / 230V Output frequency: 50Hz Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Integralfuel tank 7)、Waterproof

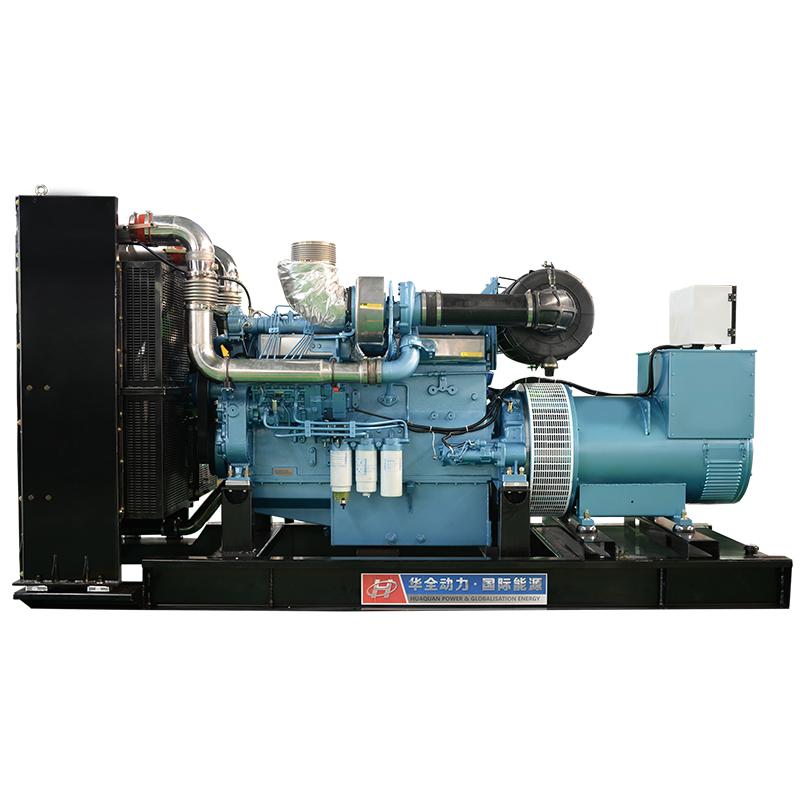

Technical parameters of diesel generator set Generator set model：HQ400GF Steady state voltage adjustment rate (%): 1 Generator power:400kW/500kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Generator set current:720A Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel generator size:3650*1540*1920 （L*W*H mm） Diesel generator fuel consumption (100% load):210g/kWh Diesel generator weight:4200kg Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Weichai engine Cooling method: Closed water-cooling Diesel engines model: 6M26D484E200 Oil supply method: direct injection Engine cylinder number: 6 / L Type Speed regulation method: Mechanical Bore stroke: 150*150mm Intake method: Natural inhalation Compression ratio: 15：1 Overload capacity: 110% Start method：DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of generator Generator brand：Huaquan Brushless Generator Protection level：IP22 Generator Model：HQF-400 Wiring mode：Three-phase four-wire, Y-connection Generator power: 400kW/500kVA Adjustment method: AVR (Automatic Voltage Regulator) Rated voltage: 400V / 230V Output frequency: 50Hz Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、
Technical parameters of diesel generator set Generator set model：HQ400GF Steady state voltage adjustment rate (%): 1 Generator power:400kW/500kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Generator set current:720A Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel generator size:3400*1390*1780 （L*W*H mm） Diesel generator fuel consumption (100% load):205g/kWh Diesel generator weight:3650kg Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Yuchai diesel engine Cooling method: Closed water-cooling Diesel engines model: YC6T660L-D31 Oil supply method: direct injection Engine cylinder number: 6 / L Type Speed regulation method: Mechanical Bore stroke: 145*165 mm Intake method: Natural inhalation Compression ratio: 15：1 Overload capacity: 110% Start method：DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of generator Generator brand：Huaquan Brushless Generator Protection level：IP22 Generator Model：HQF-400 Wiring mode：Three-phase four-wire, Y-connection Generator power: 400kW/500kVA Adjustment method: AVR (Automatic Voltage Regulator) Rated voltage: 400V / 230V Output frequency: 50Hz Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel

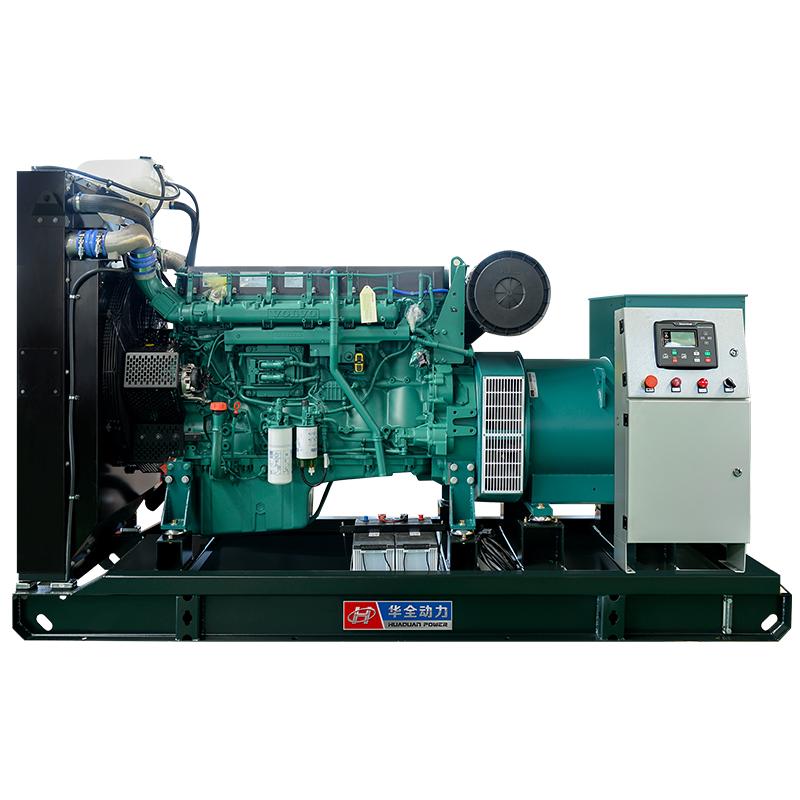

Technical parameters of diesel generator set Generator set model：HQ400GF Steady state voltage adjustment rate (%): 1 Generator power:400kW/500kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Generator set current:720A Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel generator size:3350*1160*2022（L*W*H mm） Diesel generator fuel consumption (100% load):213g/kWh Diesel generator weight:2116kg Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Volvo engine Cooling method: Closed water-cooling Diesel engines model: TAD1641GE Oil supply method: direct injection Engine cylinder number: 6 / L Type Speed regulation method: Mechanical Bore stroke: 144*165mm Intake method: Natural inhalation Compression ratio: 16.5：1 Overload capacity: 110% Start method：DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of generator Generator brand：Huaquan Brushless Generator Protection level：IP22 Generator Model：HQF-400 Wiring mode：Three-phase four-wire, Y-connection Generator power: 400kW/500kVA Adjustment method: AVR (Automatic Voltage Regulator) Rated voltage: 400V / 230V Output frequency: 50Hz Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Inte
Technical parameters of diesel generator set Generator set model：HQ400GF Steady state voltage adjustment rate (%): 1 Generator power:400kW/500kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Generator set current:720A Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel generator size:3650*1540*1920 （L*W*H mm） Diesel generator fuel consumption (100% load):210g/kWh Diesel generator weight:4200kg Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Weichai engine Cooling method: Closed water-cooling Diesel engines model: 6M26D484E200 Oil supply method: direct injection Engine cylinder number: 6 / L Type Speed regulation method: Mechanical Bore stroke: 150*150mm Intake method: Natural inhalation Compression ratio: 15：1 Overload capacity: 110% Start method：DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of generator Generator brand：Huaquan Brushless Generator Protection level：IP22 Generator Model：HQF-400 Wiring mode：Three-phase four-wire, Y-connection Generator power: 400kW/500kVA Adjustment method: AVR (Automatic Voltage Regulator) Rated voltage: 400V / 230V Output frequency: 50Hz Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、
