Description
Parametric
Service
| Technical parameters of water pump | |
| Brand/Origin: Huaquan/Shandong | Medium：/ |
| Water pump type: mixed flow pump | Model：200HW-8 |
| Shaft power：9.6-9.39-9.41kW | Suction Height：4-6m |
| Head of delivery：9.6-8.0-6.0m | Inlet diameter：200m |
| Rate of flow：270-360-432m³/h | Outlet diameter：200m |
| Technical parameters of diesel engine：K4100D engine | |
| Brand/Origin：BL/Shandong | Cooling method: closed water circulation cooling |
| Diesel engine model：K4100D | Fuel supply method: direct injection |
| Common power of diesel engines：/ | Diesel engine standby power：/ |
| Displacement：/ | Speed regulation method: mechanical regulation |
| Number of cylinders/structure: 4/L-type | Air intake method: naturally aspirated |
| Bore stroke：100x115mm | Overload capacity：110% |
| Start mode：DC12V Electric start | Rated speed：1500rpm |
Single stage double suction split pump: High flow, various engineering pumps that can extract clean water and seawater.

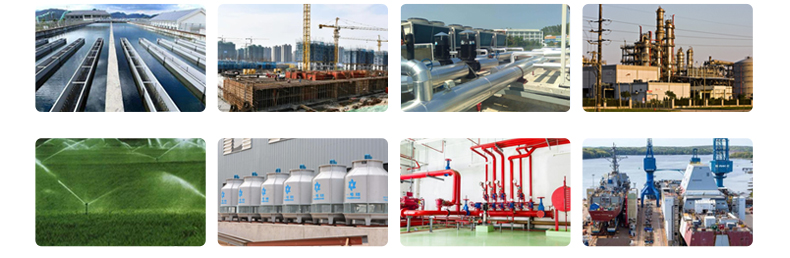

Mainly suitable for industries such as water plants, air conditioning circulating water, building water supply, irrigation, drainage pump stations, power stations, industrial water supply systems, fire protection systems, shipbuilding industry, etc, Used for conveying clean water without solid particles or other liquids with physical and chemical properties similar to water.
