1. The design standard of the biogas unit is 40kW/50kVA, the voltage is 400V, the working frequency is 50Hz, and the power factor is 0.8 (lagging). The biogas engine can work in different methane gas concentration ranges (50-97%) or gas with the same calorific value, producing 100% electricity. 2. For the generator set running at normal operating temperature, the voltage, frequency change rate and engine recovery time conform to the ISO8528-5 standard, that is, to meet the 25% stepwise sudden load at the beginning, from the 25%-60% load stage Suddenly add 15% of the rated load, add 10% of the rated load from the 60%-80% load stage, and withstand 25% of the sudden load drop. Gas requirements： Fuel type Biogas Intake pressure 8Kpa-15Kpa, pressure change rate 1Kpa/min Methane content 55% Low calorific value (LHV) 25MJ/Nm3 Impurity particle size 5m, content 30mg/nm Sulfide 50mg/Nm3 Intake air temperature 40℃ Moisture content 40g/nm3 Note: Demineralized water should be used for the high and low temperature cycles of the engine, and the cooling water should be slightly alkaline clean water, and must not contain corrosive compounds such as chloride, sulfate or acid. The main index requirements are as follows ： Hardness 0.7～5.3me/L Chloride ion content 150mg/L PH value7～8.5 █ The generator is a synchronous generator, four-outlet, closed connection type, and the shrapnel is directly driven. The generator is equipped with a brushless rotating magnetic field. █ The generator should be closed and installed on the engine and the main rotor should be installed on the engine flywheel, using a flexible drive disc to ensure permanent alignment. █ The generator is an open waterproof drip design and is equipped with a protective device, manufactured according to IEE, NEMA MG-1-22 and IP23 standards, single bearing, raised electrode, rotating magnetic field, synchronous damping winding coil and 2/3 pitch The stator coil produces the most ideal voltage waveform. █ Protection level of forming winding and coastal climate, using vacuum pressure dipping process. The stator coil should be 2/3 pitch. The rotor and stator coils should be fully reinforced to withstand phase-to-phase and ground-to-phase failures. █ All insulation systems should be Class H of NEMA MG-1 standard. The stator has two dipping and drying (according to Class H insulation requirements). It is a solid-state electronic type, voltage/Hz type, three-phase voltage sensing to maintain the voltage
1. The design standard of the biogas unit is 30kW/37.5kVA, the voltage is 400V, the working frequency is 50Hz, and the power factor is 0.8 (lagging). The biogas engine can work in different methane gas concentration ranges (50-97%) or gas with the same calorific value, producing 100% electricity. 2. For the generator set running at normal operating temperature, the voltage, frequency change rate and engine recovery time conform to the ISO8528-5 standard, that is, to meet the 25% stepwise sudden load at the beginning, from the 25%-60% load stage Suddenly add 15% of the rated load, add 10% of the rated load from the 60%-80% load stage, and withstand 25% of the sudden load drop. Gas requirements： Fuel type Biogas Intake pressure 8Kpa-15Kpa, pressure change rate 1Kpa/min Methane content 55% Low calorific value (LHV) 25MJ/Nm3 Impurity particle size 5m, content 30mg/nm Sulfide 50mg/Nm3 Intake air temperature 40℃ Moisture content 40g/nm3 Note: Demineralized water should be used for the high and low temperature cycles of the engine, and the cooling water should be slightly alkaline clean water, and must not contain corrosive compounds such as chloride, sulfate or acid. The main index requirements are as follows ： Hardness 0.7～5.3me/L Chloride ion content 150mg/L PH value7～8.5 █ The generator is a synchronous generator, four-outlet, closed connection type, and the shrapnel is directly driven. The generator is equipped with a brushless rotating magnetic field. █ The generator should be closed and installed on the engine and the main rotor should be installed on the engine flywheel, using a flexible drive disc to ensure permanent alignment. █ The generator is an open waterproof drip design and is equipped with a protective device, manufactured according to IEE, NEMA MG-1-22 and IP23 standards, single bearing, raised electrode, rotating magnetic field, synchronous damping winding coil and 2/3 pitch The stator coil produces the most ideal voltage waveform. █ Protection level of forming winding and coastal climate, using vacuum pressure dipping process. The stator coil should be 2/3 pitch. The rotor and stator coils should be fully reinforced to withstand phase-to-phase and ground-to-phase failures. █ All insulation systems should be Class H of NEMA MG-1 standard. The stator has two dipping and drying (according to Class H insulation requirements). It is a solid-state electronic type, voltage/Hz type, three-phase voltage sensing to maintain the volta
1. The design standard of the biogas unit is 20kW/25kVA, the voltage is 400V, the working frequency is 50Hz, and the power factor is 0.8 (lagging). The biogas engine can work in different methane gas concentration ranges (50-97%) or gas with the same calorific value, producing 100% electricity. 2. For the generator set running at normal operating temperature, the voltage, frequency change rate and engine recovery time conform to the ISO8528-5 standard, that is, to meet the 25% stepwise sudden load at the beginning, from the 25%-60% load stage Suddenly add 15% of the rated load, add 10% of the rated load from the 60%-80% load stage, and withstand 25% of the sudden load drop. Gas requirements： Fuel type Biogas Intake pressure 8Kpa-15Kpa, pressure change rate 1Kpa/min Methane content 55% Low calorific value (LHV) 25MJ/Nm3 Impurity particle size 5m, content 30mg/nm Sulfide 50mg/Nm3 Intake air temperature 40℃ Moisture content 40g/nm3 Note: Demineralized water should be used for the high and low temperature cycles of the engine, and the cooling water should be slightly alkaline clean water, and must not contain corrosive compounds such as chloride, sulfate or acid. The main index requirements are as follows ： Hardness 0.7～5.3me/L Chloride ion content 150mg/L PH value7～8.5 █ The generator is a synchronous generator, four-outlet, closed connection type, and the shrapnel is directly driven. The generator is equipped with a brushless rotating magnetic field. █ The generator should be closed and installed on the engine and the main rotor should be installed on the engine flywheel, using a flexible drive disc to ensure permanent alignment. █ The generator is an open waterproof drip design and is equipped with a protective device, manufactured according to IEE, NEMA MG-1-22 and IP23 standards, single bearing, raised electrode, rotating magnetic field, synchronous damping winding coil and 2/3 pitch The stator coil produces the most ideal voltage waveform. █ Protection level of forming winding and coastal climate, using vacuum pressure dipping process. The stator coil should be 2/3 pitch. The rotor and stator coils should be fully reinforced to withstand phase-to-phase and ground-to-phase failures. █ All insulation systems should be Class H of NEMA MG-1 standard. The stator has two dipping and drying (according to Class H insulation requirements). It is a solid-state electronic type, voltage/Hz type, three-phase voltage sensing to maintain the voltage

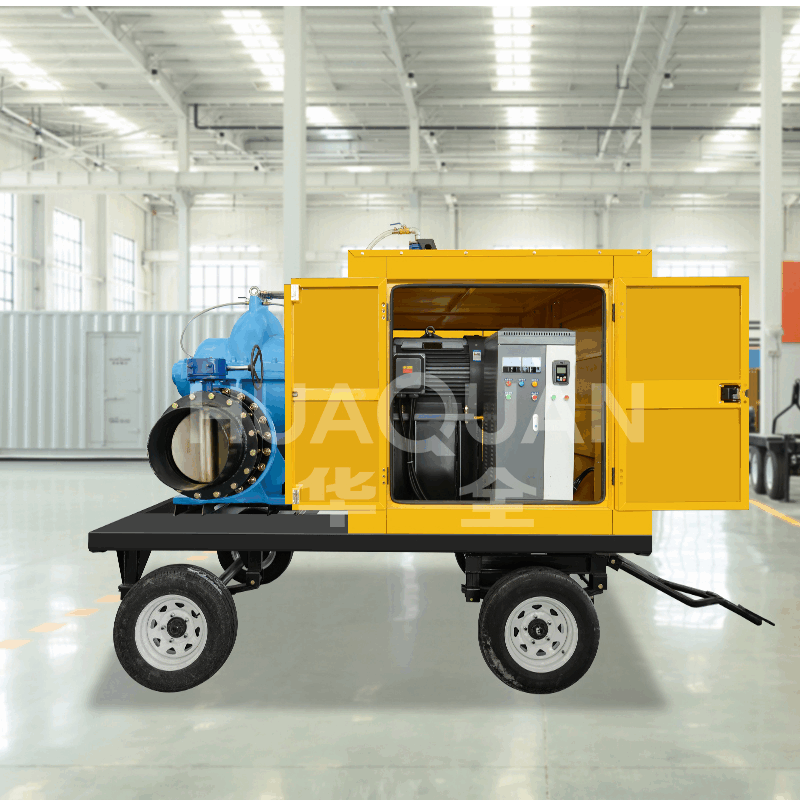

diesel water pump Generator set model：HQ90PF Steady state voltage adjustment rate (%): 1 Generator power:90kW/112.5kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel water pump size:2250*780*1380 （L*W*H mm） Diesel generator fuel consumption (100% load):209g/kWh Diesel water pump weight:1500kg（reference） Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Yuchai diesel engine Cooling method: Closed water-cooling Diesel engines model: YC6B135Z-D20 Oil supply method: direct injection Engine cylinder number: 6/ L Type Speed regulation method: Mechanical Bore stroke: 108*132 mm Intake method: Natural inhalation Compression ratio: 17.5：1 Overload capacity: 110% Start method：DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of water pump water pump brand：Huaquan water pump Protection level：IP23 water pump Model：250ZX500-32 Flow：500m/h Rotating speed: 1500r/min Head: 32m Import: 250mm Export: 250mm Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Integralfuel tank 7)、Waterproof type(Cabinet) 8)、Mobiletrailer(Drip proof) 9)、Mobile trailer(Silent type) 2. High pressure oil pump The fuel injection pump is one of the main components of
diesel water pump Generator set model：HQ10PF Steady state voltage adjustment rate (%): 1 Generator power:10kW/12.5kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel water pump size:1650*650*1300 （L*W*H mm） Diesel generator fuel consumption (100% load):209g/kWh Diesel water pump weight:600kg（reference） Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Ricardo diesel engine Cooling method: Closed water-cooling Diesel engines model: ZH4100D Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 100*115 mm Intake method: Natural inhalation Compression ratio: 19：1 Overload capacity: 110% Start method：DC 12V Electric start Diesel engines Speed: 1500rpm Technical parameters of water pump water pump brand：Huaquan water pump Protection level：IP23 water pump Model：200HW-8 Flow：360m/h Rotating speed: 1500r/min Head: 8m Import: 200mm Export: 150mm Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Integralfuel tank 7)、Waterproof type(Cabinet) 8)、Mobiletrailer(Drip proof) 9)、Mobile trailer(Silent type) 2. High pressure oil pump The fuel in
diesel water pump Generator set model：HQ15PF Steady state voltage adjustment rate (%): 1 Generator power:15kW/18.75kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel water pump size:1580*750*1200 （L*W*H mm） Diesel generator fuel consumption (100% load):209g/kWh Diesel water pump weight:600kg（reference） Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Ricardo diesel engine Cooling method: Closed water-cooling Diesel engines model: Y480BD2 Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 108*115 mm Intake method: Natural inhalation Compression ratio: 17：1 Overload capacity: 110% Start method：DC 12V Electric start Diesel engines Speed: 1500rpm Technical parameters of water pump water pump brand：Huaquan water pump Protection level：IP23 water pump Model：100ZW100-15 Flow：60m/h Rotating speed: 1500r/min Head: 15m Import: 100mm Export: 80mm Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Integralfuel tank 7)、Waterproof type(Cabinet) 8)、Mobiletrailer(Drip proof) 9)、Mobile trailer(Silent type) 2. High pressure oil pump The fue
diesel water pump Generator set model：HQ15PF Steady state voltage adjustment rate (%): 1 Generator power:15kW/18.75kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel water pump size:1580*750*1200 （L*W*H mm） Diesel generator fuel consumption (100% load):209g/kWh Diesel water pump weight:600kg（reference） Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Ricardo diesel engine Cooling method: Closed water-cooling Diesel engines model: Y480BD2 Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 108*115 mm Intake method: Natural inhalation Compression ratio: 17：1 Overload capacity: 110% Start method：DC 12V Electric start Diesel engines Speed: 1500rpm Technical parameters of water pump water pump brand：Huaquan water pump Protection level：IP23 water pump Model：100ZW100-15 Flow：60m/h Rotating speed: 1500r/min Head: 15m Import: 100mm Export: 80mm Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Integralfuel tank 7)、Waterproof type(Cabinet) 8)、Mobiletrailer(Drip proof) 9)、Mobile trailer(Silent type) 2. High pressure oil pump The fue
diesel water pump Generator set model：HQ50PF Steady state voltage adjustment rate (%): 1 Generator power:50kW/62.5kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel water pump size:1800*750*1300 （L*W*H mm） Diesel generator fuel consumption (100% load):209g/kWh Diesel water pump weight:800kg（reference） Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Ricardo diesel engine Cooling method: Closed water-cooling Diesel engines model: R4105D Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 105*125 mm Intake method: Natural inhalation Compression ratio: 19：1 Overload capacity: 110% Start method：DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of water pump water pump brand：Huaquan water pump Protection level：IP23 water pump Model：4PW Flow：200m/h Rotating speed: 1500r/min Head: 200m Import: 100mm Export: 100mm Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Integralfuel tank 7)、Waterproof type(Cabinet) 8)、Mobiletrailer(Drip proof) 9)、Mobile trailer(Silent type) 2. High pressure oil pump The fuel injec
diesel water pump Generator set model：HQ75PF Steady state voltage adjustment rate (%): 1 Generator power:75kW/93.75kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel water pump size:2100*800*1600 （L*W*H mm） Diesel generator fuel consumption (100% load):209g/kWh Diesel water pump weight:900kg（reference） Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Ricardo diesel engine Cooling method: Closed water-cooling Diesel engines model: R6105D Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 105*125 mm Intake method: Natural inhalation Compression ratio: 19：1 Overload capacity: 110% Start method：DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of water pump water pump brand：Huaquan water pump Protection level：IP23 water pump Model：10SH-9 Flow：300-600m/h Rotating speed: 1500r/min Head: 32-42m Import: 250mm Export: 200mm Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Integralfuel tank 7)、Waterproof type(Cabinet) 8)、Mobiletrailer(Drip proof) 9)、Mobile trailer(Silent type) 2. High pressure oil pump The
diesel water pump Generator set model：HQ30PF Steady state voltage adjustment rate (%): 1 Generator power:30kW/37.5kVA Voltage fluctuation rate (%): 0.5 Power factor:COS = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):1 Steady state frequency adjustment rate (%): 1 Rated frequency:50Hz Frequency fluctuation rate (%): 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):3 Diesel water pump size:1580*750*1200 （L*W*H mm） Diesel generator fuel consumption (100% load):209g/kWh Diesel water pump weight:600kg（reference） Diesel generator volume(LP7m):95dB（A） Technical parameters of diesel engine Diesel engines brand：Ricardo diesel engine Cooling method: Closed water-cooling Diesel engines model: ZH4100D Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 100*115 mm Intake method: Natural inhalation Compression ratio: 19：1 Overload capacity: 110% Start method：DC 12V Electric start Diesel engines Speed: 1500rpm Technical parameters of water pump water pump brand：Huaquan water pump Protection level：IP23 water pump Model：4PW Flow：108-180m/h Rotating speed: 1500r/min Head: 24-28m Import: 100mm Export: 100mm Insulation class: H class Output factor: COS = 0.8 (lag) Genset standard features 1)、Direct injection internal combustion engine(Diesel)； 2)、AC synchronous generator（Single Bearing）； 3)、Water Radiatordesign for 40-45℃ Ambient belt-driven fans and guards； 4)、Generation output air switch、Standard control panel； 5)、Steel common base with shock absorber； 6)、Dry-type air filterfuel filter，oil filter、starting motor、Self-charging alternator； 7)、starter battery and connecting cables； 8)、Industrial9dBmufflerand accessories； 9)、The engine and alternators original technical papers,manuals and testing reports ship with GenSet； Optional accessories（Extra charged） 1)、Engine oil、diesel、water jacket、Anti-condensation heater 2)、Battery floating charger 3)、Self-protection unit/self-starting control panel 4)、Tree-remote control panel 5)、ATS AUTO-loadedtransferringscreen 6)、Daily fuel tank、Integralfuel tank 7)、Waterproof type(Cabinet) 8)、Mobiletrailer(Drip proof) 9)、Mobile trailer(Silent type) 2. High pressure oil pump The fue
