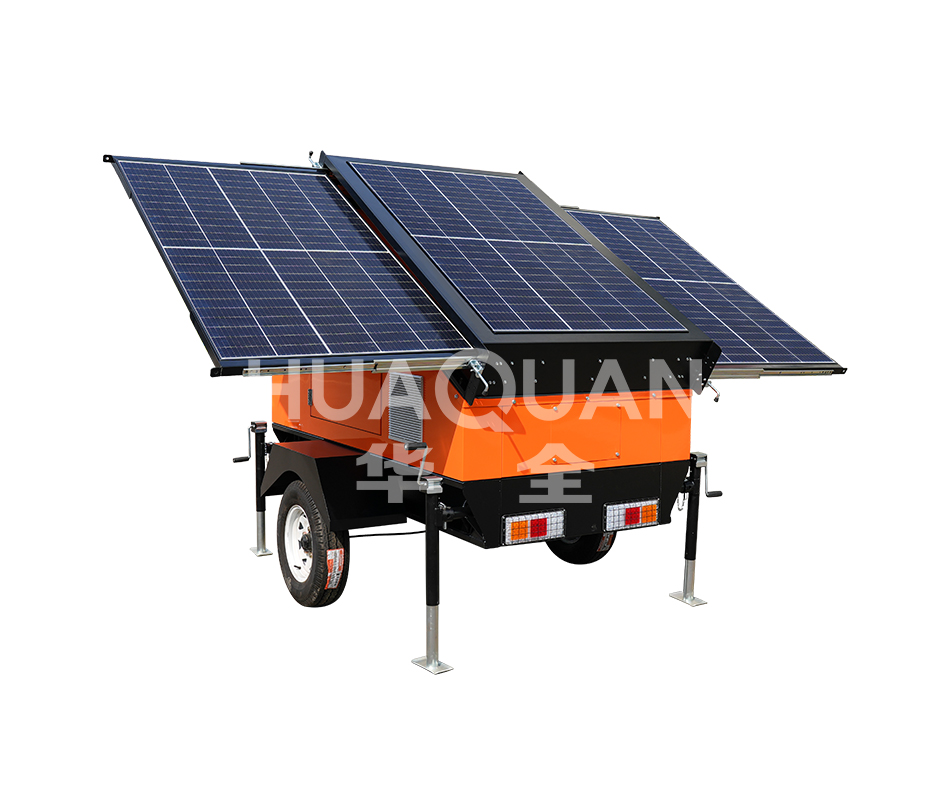

Photovoltaic power station
Photovoltaic power stations use the photovoltaic effect of semiconductor materials to convert solar radiation energy into electrical energy and store it in the battery pack. Combined with the high-speed trailer chassis, it can meet the needs of convenient, fast and environmentally friendly outdoor electricity consumption. Large capacity, provides a variety of energy replenishment methods.
Photovoltaic power stations are mainly composed of solar panels, control- lers, high-speed trailer chassis, battery packs and inverters.
Scope of application
Zero-carbon smart parks, base stations, mountainous areas, island fishing villages, road construction, border posts, emergency rescue, etc.
Ultra-high power single-sided modules
Maximum output power 405W
Power tolerance 0~+5W
Maximum efficiency 21%
Parameter configuration
| 型号 | Model | HQDY-30-52 |
| 电池类型 | Battery Type | 磷酸铁锂 |
| 电池模组数量 | Number of battery modules | 10 |
| 额定电压（V） | Rated voltage(V) | 256DC |
| 额定容量(Ah) | Rated capacity(Ah) | 204 |
| 电压范围(V) | Voltage range (V) | 160～292DC |
| 额定能量 (kW·h) | Rated energy (kW·h) | 52 |
| 自带光伏功率 (W) | Self-contained photovoltaic power (W) | 1200 |
| Max光伏功率 (W) | Maximum photovoltaic power (W) | 39000 |
| 标准放电电流(A) | Standard discharge current (A) | 100 |
| 逆变功率 (W) | Inverter power (W) | 30000 |
| 交流输出电压 (V) | AC output voltage (V) | 400AC |
| 交流输出频率 (Hz) | AC output frequency (Hz) | 50 |
| 显示屏 | Display | 触摸屏 |
| 尺寸 L*W*H(mm) | Size: L*W*H(mm) | 4133*1880*2435 |
| 重量(kg) | Weight(kg) | 1600 |
| 充电温度范围 (℃) | Charging temperature range (℃) | 0~45 |
| 放电温度范围(℃) | Discharge temperature range (℃) | -20～60 |
| 电池循环寿命 | Battery cycle life | 3000次 |
